0.5TPH CE Passed RO Water Treatment Plant For Chemical Processing

0.5TPH CE Passed RO Water Treatment Plant For Chemical Processing

Ro water treatment plant/water treatment machine is the eighties developed a membrane separation technology, which mainly use the semipermeable membrane permeation principle, to give it a certain way by applying a pressure on the natural infiltration direction against the force of the water in the concentrated solution dilute the solution to penetrate this way is called reverse osmosis. By the components of the device is reverse osmosis reverse osmosis unit.
One, two reverse osmosis + EDI preparation (purified water process characteristics)
1 Suitable for raw water salinity compared Height regions;
2 product water conductivity is better;
3 one-time investment of less;
4 lower operating costs;
5.Stability.

500LPH Working Principle

Ro plant operating process:

Raw water storage tank -- Raw water pump -- Sand filter -- Carbon filter -- Cartridge(Security) filter -- RO unit -- Pure water tank

RO Plant Detailed Specification:

1. Sand filter - mainly used for the removal of the sediment from water.
2. Carbon filter--mainly used for removing chlorine,odor and other organic gases, also to clear up the taste of water .
3. Cartridge (security) filter - used for removing small particle 1µ-5 µ to protect RO membranes.
3. High pressure pump- Provide the high pressure to RO membrane.
5. RO Unit-- The main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.
6. Pure water tank:After the below process,The water result is pure enough for different application.

Typical industrial Reverse osmosis system as following:
1.Process: Raw water pump - Sand filter - Carbon filter - Cartridge filter - High pressure pump
-RO membrane host
Application: mineral water, direct drinking water, beverage&food,win.,ect
Water outlet: Conductivity <10us.cm25℃(support customize)
Production Capacity: 1m³ per hour
Water treatment process flow diagram:

Product Advantages:
a, High-quality.Anti-corrosion equipment, long service life.Steady flow.
b, Simple operation, Easy to learn and install,small in size.
c,After-service.One year warranty, whole life service.

The change time of the consumables:

Detail Pictures :

ro water purifier machine

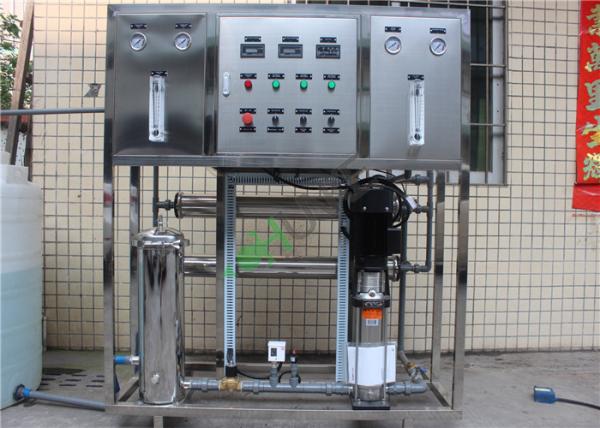

industrial ro plant

0.5TPH CE Passed RO Water Treatment Plant For Chemical Processing Images
